About MGO Board

What is MGO Board?

MGO board (Magnesium Oxide board) is a factory-made, non-insulating building board product.

It can be used for a number of applications including internal and external wall and ceiling linings, fascias, soffits, tile backing and floorings, and is particularly suitable for use in fire rated wall and lining systems.

Product Data

  • Material: Modified magnesia cement
  • Fireproofing characteristic: A grade non-combustible
  • Density: 0.96g/cm3
  • Intensity of bending resistance when dry: 18Mpa
  • Intensity of bending resistance when moisture-saturated condition: 22Mpa
  • The rate of deformation when pick up the moisture: 0.26%
  • The shrinking rate when heated: 1.0%
  • Water permeability: There is no drop of water to emerge in the back
  • Impact resistance: No crack, strip and run through
  • Thermal resistance: 1.14m2k/w
  • Sound insulation
  • Colour: White
  • Security: 100% does not include asbestos, formaldehyde, and benzene
  • Radioactivity: Not limited by the scope of application

MGO Corp Board Ranges

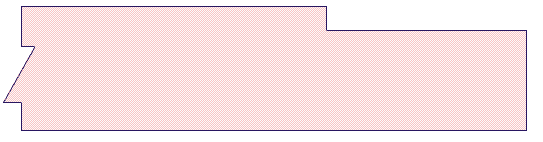

Recessed edge

MGO Corp Board Recessed Edge

  • 1.5mm on the long face side allows joint reinforcement
  • Provides a smooth even and continuous surface once joined

Square Edge

MGO Corp Board Square Edge

  • Square edge finishing
  • The square edge allows sheets to be butted up together neatly
  • These joints may be covered with aluminium, vinyl or timber mouldings

Extraordinary FIRE performance for wall, ceiling and flooring applications

Easily achieve 90 min fire performance with 10mm MGO board and 120min fire performance with 12mm MGO board

Rescom Thickness Single Panel Performance Single Panel on Stud Single Panel either side of Stud: System Excl Acoustic Requirements
10mm 60 Mins Non-loadbearing wall -/60/60
Loadbearing wall – 60/60/60
Non-loadbearing wall -/60/60
Loadbearing wall – 60/60/60 (Thermal Insulation Required in Ceiling Cavity)
10mm 90 Mins Non-loadbearing wall -/90/90
Loadbearing wall – 90/90/90
Non-loadbearing wall -/90/90
Loadbearing wall – 90/90/90 (Thermal Insulation Required in Ceiling Cavity)
12mm 120 Mins Non-loadbearing wall -/120/120
Loadbearing wall – 120/120/120
Non-loadbearing wall -/120/120
Loadbearing wall – 120/120/120 (Thermal Insulation Required in Ceiling Cavity)
14mm 180 Mins Non-loadbearing wall -/180/180
Loadbearing wall – 180/180/180
Non-loadbearing wall -/180/180
Loadbearing wall – 180/180/180 (Thermal Insulation Required in Ceiling Cavity)
15mm 240 Mins Non-loadbearing wall -/240/240
Loadbearing wall – 240/240/240
Non-loadbearing wall -/240/240
Loadbearing wall – 240/240/240 (Thermal Insulation Required in Ceiling Cavity)
18mm Flooring 120 Mins Non-loadbearing wall -/120/120
Loadbearing wall – 120/120/120
Non-loadbearing wall -/120/120
Loadbearing wall – 120/120/120 (Thermal Insulation Required in Ceiling Cavity)

Suitable for wide range of decorative finishing including paint, wall paper, texture coating, etc.

WHY MGO BOARD?

MgO Corp Board has been proven to drastically reduce your building cost. It offers savings of up to 67% on material and labour to that of traditional fire separation and party walls

For instance, in construction in Australia and New Zealand a non-load bearing fire separation wall using the most recognised and reliable double fire sheeting system will cost you, the consumer, a minimum of 50% more in materials and labour than the MgO Corp Board System.

The same can be said about acoustic requirements and the application of MgO Corp Board shearing systems to dramatically deliver the consumer a higher quality system as a much reduced pricing point. The amazing major point of difference is that MgO Corp Board delivers all the above and below benefits in the one product:

  • External cladding
  • Bathroom linings
  • Internal wall sheeting
  • Fire separation wall systems

  • Maintenance
  • Heating costs
  • Roof linings and installation
  • Floor sheathing

  • Acoustic requirements
  • Painting
  • Cooling costs
  • Energy efficiency

ADVANTAGES OF MGO BOARD

Consistent Quality

Light Weight

Superior Strength

Asbestos Free

Extraordinary Fire Performance

MGO Board is resistant to

Termites

Ultravoilet Light

Water

Vermin

Mould

WHERE can you use MGO board?

MGO boards are extremely well suited for use in flood or fire prone areas

What application you can do with MGO board?

  • External cladding
  • Roof lining and installation
  • Bathroom linings
  • Flooring sheathing
  • Internal wall sheathing
  • Acpoustic requirements
  • Fire separation wall systems
  • Suspended & acoustic ceilings
  • XPS/EPS sandwich panels
  • Barge boards

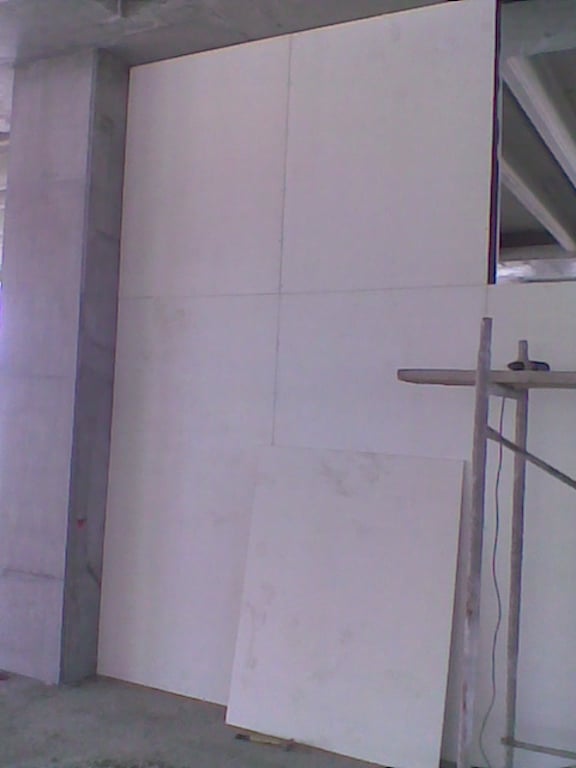

Commercial Fitout of MGO Boards
Commercial Fitout of MGO Boards

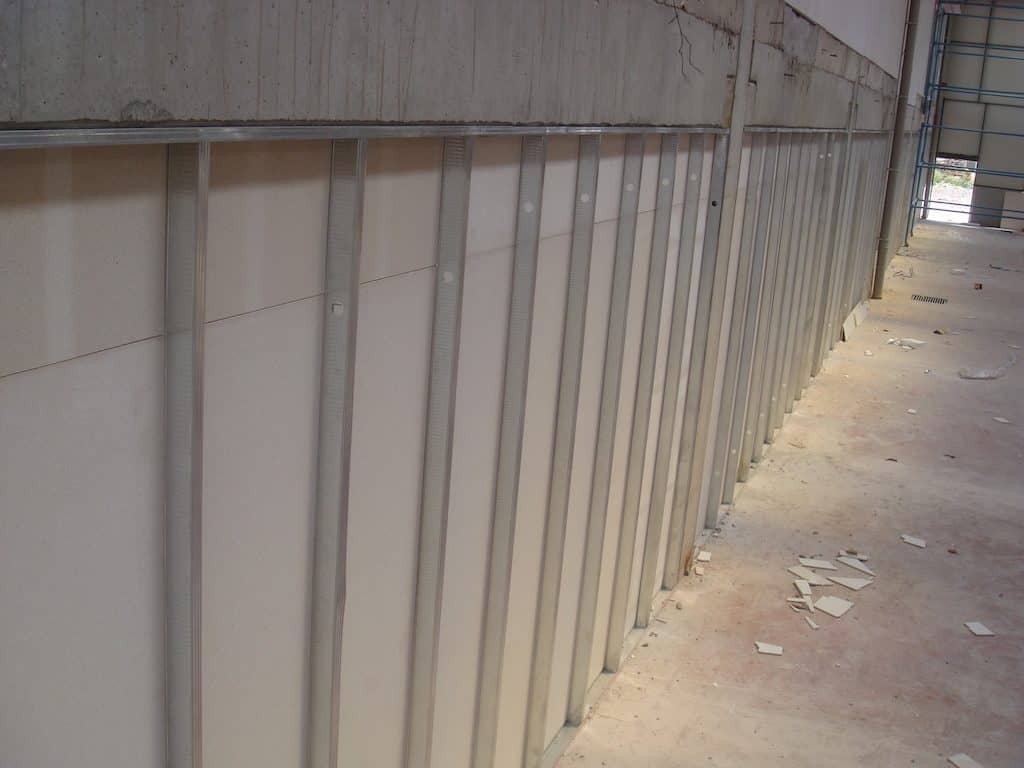

Commercial MGO boards in a warehouse
Commercial warehouse of MGO Boards

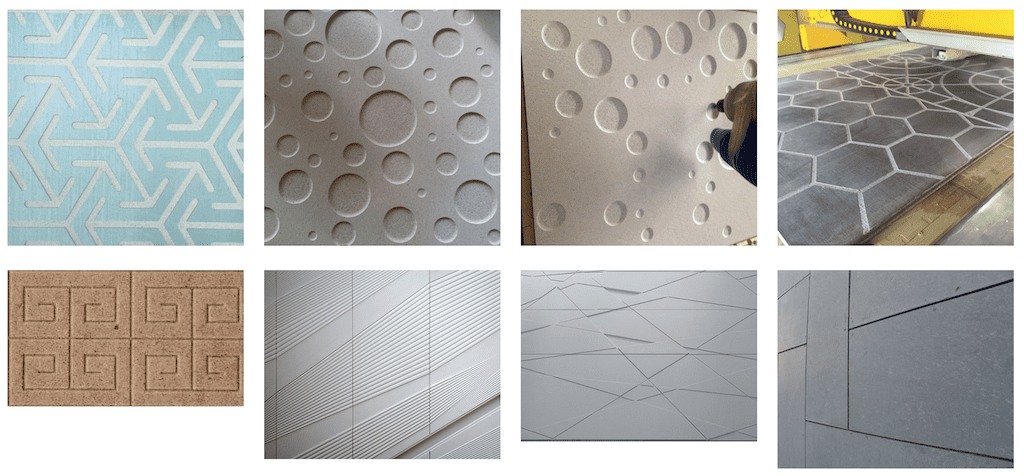

Engineered MGO Board Finishes
MGO Boards with Engineered Finishes

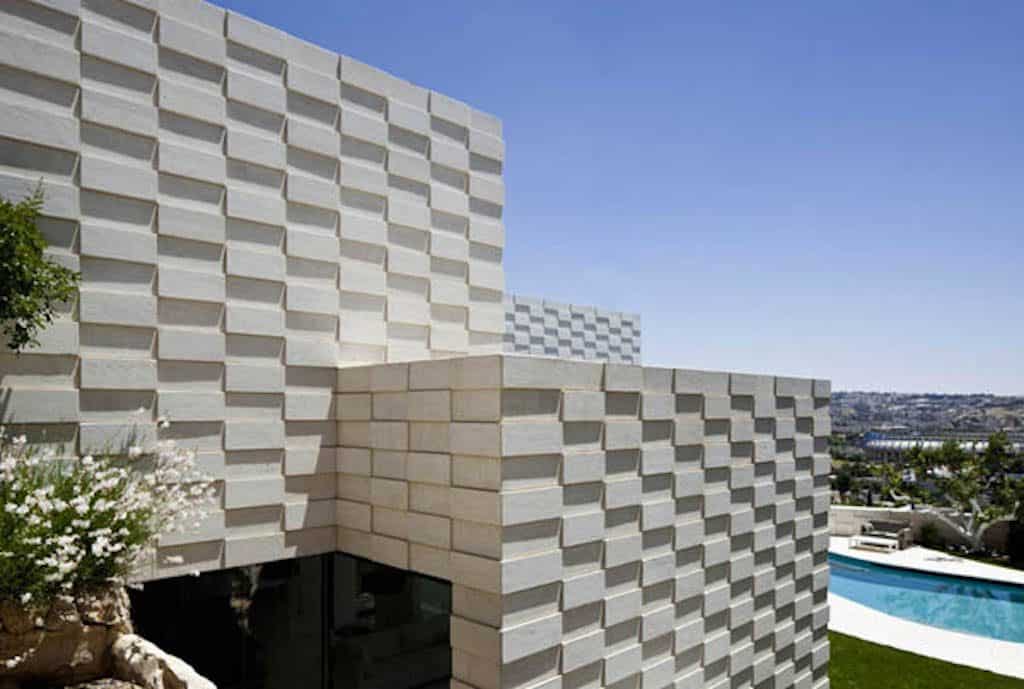

Exterior MGO Cladding
Exterior MGO Board Cladding
Exterior Sheathing with MGO Boards
Exterior Sheathing with MGO Boards

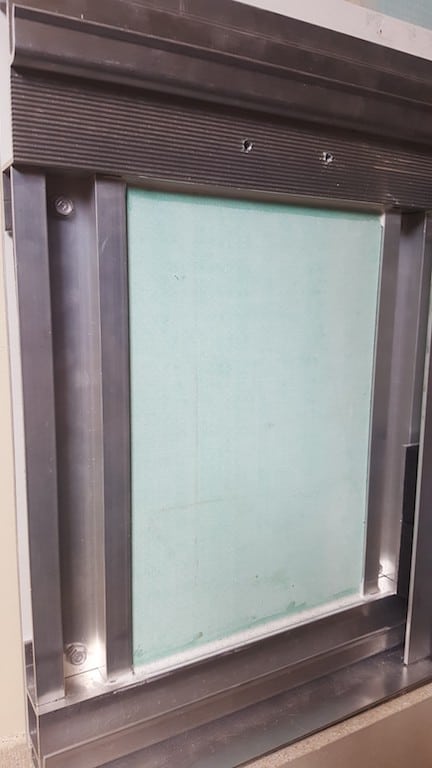

MGO Facade
MGO Facade
MGO Board Flooring
MGO Board Flooring

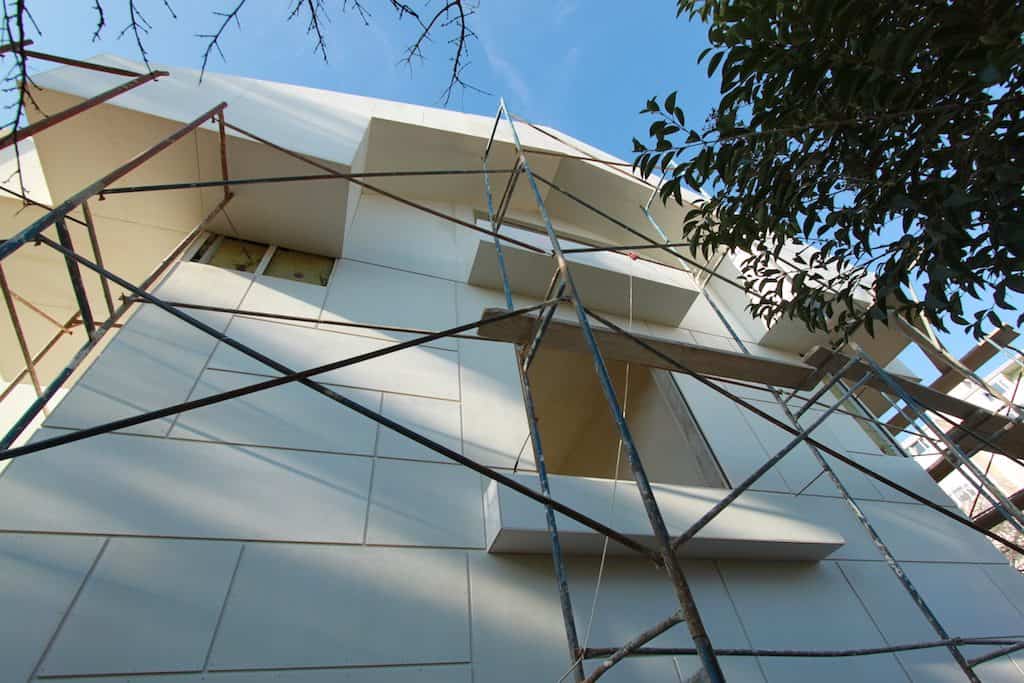

Exterior MGO Boards on Housing
Exterior MGO Boards on Housing

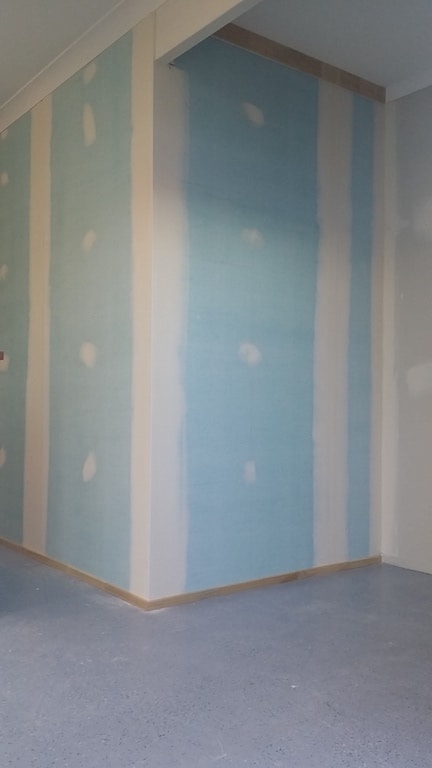

Interior Sheathing using MGO Boards

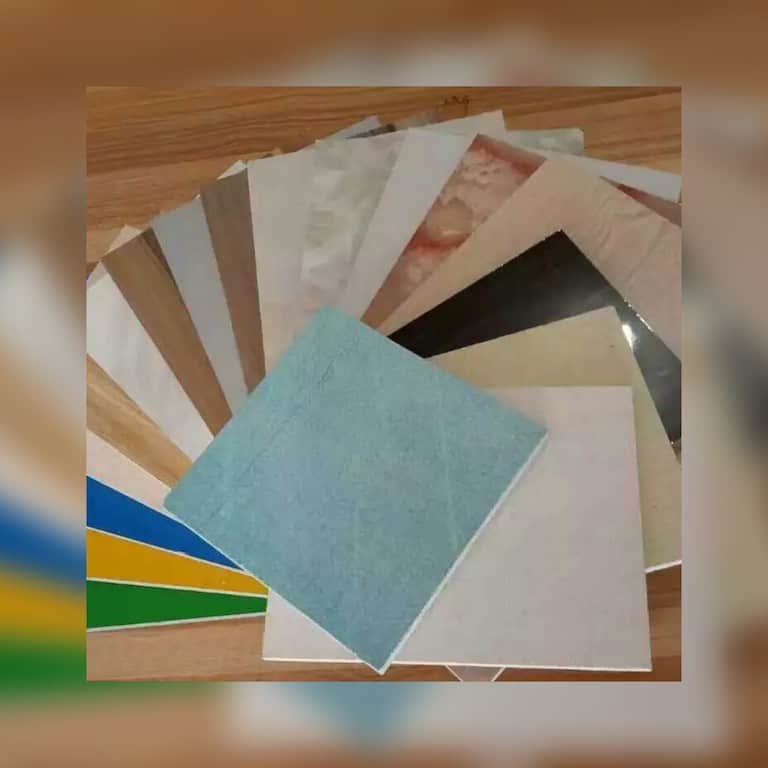

Laminated MGO Boards
Laminated MGO Boards
MGO Boards Packed
MGO Boards Packed

Do you need Help or advice on your latest project?

Our teams are dedicated to helping you make the process as easy as possible and ensure you get the right materials for you needs
